Safecare Electro-cardiograph (ECG) Recorder
ECG-E1 is a twelve channel digital ECG instrument featuring simultaneous 12-lead signal acquisition. Its features include high-resolution thermal array printing system, high performance single-chip computer and large memory capacity. The advanced features make it ideal for the ECG examination in clinic and hospitals.
Its various features include:
Simultaneous printing 12 lead ECG traces of the same heat beat cycle enables prompt detection and location of ectopic premature, classification and diagnosis of arrhythmia, classification and location of WPW syndrome, diagnosis of tachycardia with broad QRS complex, as well as diagnosis of intraventricular conduction block with little tolerance.
Simultaneous observation of ECG trace of the same heart beat cycle enables examination of detailed ECG and improvement of accuracy and precision in measurement of ECG parameters without the randomness, variant and irregularity in single lead acquisition.
Standard measurements of ECG parameters include P wave duration, QRS duration and T wave duration, P-R interval and Q-T interval.
Simultaneous display of ECG trace of the same heart beat cycle enables accurate judgment of ECG variant by directly comparing the 12 lead ECG trace and location of ECG trace with lower amplitude, particularly P wave, U wave and etc.
Capable to set up ECG trace database compliant to international ECG standard for printing out accurate ECG waveform, annotation, statistic diagram and lead marks.
Features
Safecare Electro-cardiograph (ECG) Recorder with its color LCD display makes monitoring ECG very easy. These features with help reduce the time taken for ECG recording and alos save a lot paper.
- ECG-E1 is designed with a high-resolution thermal printer featuring 8dot/mm vertical resolution and 40dot/mm horizontal resolution(at 25mm/s) speed and filter as well as related marks.
- Simultaneously 12 lead signal acquisition ECG using standard 12 leads or Cabrera leads:
- Standard 12 leads： I-II-III aVR-L-F V1-2-3 V4-5-6
- Cabrera leads： aVL I -aVR II- aVF-III V1-2-3 V4-5-6
- Advantages of Simultaneous Acquisition/ observation/ Printing of ECG trace of the same heart beat cycle :
- Enables prompt detection and location of ectopic premature, classification and diagnosis of arrhythmia, classification and location of WPW syndrome, diagnosis of tachycardia with broad QRS complex, as well as diagnosis of intraventricular conduction block with little tolerance.
- Enables examination of detailed ECG and improvement of accuracy and precision in measurement of ECG parameters without the randomness, variant and irregularity in single lead acquisition.
- Enables accurate judgment of ECG variant by directly comparing the 12 lead ECG trace and location of ECG trace with lower amplitude, particularly P wave, U wave and etc.
- Digital filter to prevent baseline drift and automatic positioning of the baseline provide accurate ECG trace.
- Able to detect and alarm on electrode disconnection.
- LED indicator and LCD display show operation status of the unit.
- Isolated input circuit guarantees safety standard in compliance to Class I type CF.
- AC/Rechargeable battery supports continuous operation when AC power supply is not available.
- For the battery operation, ECG-E1 is equipped with a battery charger and a system for battery capacity management and protection.
- Compact size.
- Standard measurements of ECG parameters include P wave duration, QRS duration and T wave duration, P-R interval and Q-T interval are automatically calculated and printed.
- ECG trace database compliant to international ECG standard for printing out accurate ECG waveform, annotation, statistic diagram and lead marks.
- Available with 1 Channel, 3 Channel and 12 Channel printout options.
Models of Safecare Electro-cardiograph (ECG)
Safecare ECG recorders are ECG instrument featuring simultaneous 12-lead signal acquisition. Their features include high-resolution thermal array printing system, high performance single-chip computer and large memory capacity. The advanced features make it ideal for the ECG examination in clinic and hospitals.
Three models of the ECG monitor are available with a 1 Channel, 3 Channel and 12 Channel output. The differentiating features of the three models are given below:
Three models of the ECG monitor are available with a 1 Channel, 3 Channel and 12 Channel output. The differentiating features of the three models are given below:
Single Channel E1

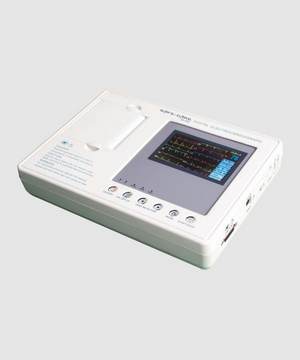

Three Channel E3

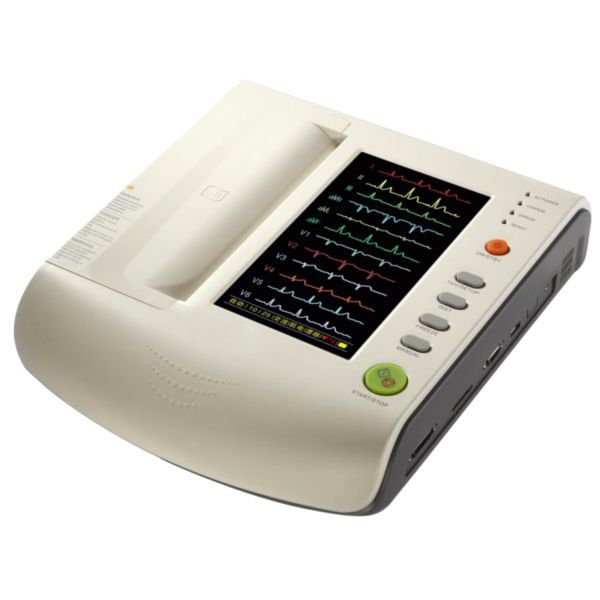

Twelve Channel E12
Printer Channels
E1-1 Channel; 50 mm Thermal Paper Printer
E3-3 Channel; 80 mm Thermal Paper Printer
E12-12 Channel; 216 mm Thermal Paper Printer
Printing (Manual\Auto)
E1-1CH, 1CH+1R printing, 60 Sec arrhythmia waveform Analysis and 5 Minutes arrhythmia waveform Analysis
E3-1CH, 1CH+1R printing, 60 Sec arrhythmia waveform Analysis and 5 Minutes arrhythmia waveform Analysis
E12-3CH+3R, 6CH, 6CH+1R, 12CH and 60 Sec arrhythmia waveform Analysis, 5 minutes arrhythmia analysis.
LCD Display
E1-4.3 inch Color TFT
E3-4.3 inch Color TFT
E12-9 inch Color TFT; Touch screen control
ECG Memory
E1-100 Records
E3-200 Records
E12-1000 Records
-
Specifications of Safecare ECG
- Product: Safecare Electro-cardiograph (ECG) Recorder
- Application: To record Electro-cardiograph (ECG)
- Lead: Standard or Cabrera 12 leads, Simultaneously 12 leads acquisition
- Input Circuit: Isolated as well as pace maker and defibrillation protected
- Patient Current Leakage: <10microA
- Input Impedance: >50MOhms
- Frequency Response: 0.05 ~ 150Hz
- Time Constant: >=3.2s
- CMRR: >80dB; >100dB (filter in use)
- EMG Filter: 25Hz(-3dB) or 35Hz(-3dB)
- Sensitivity: 5, 10, 20mm/mV +/-5%
- Recording Mode: Thermal array printer
- Paper Speed: 5, 10, 25, and 50mm/s +/-5%
- Paper Size: 50mm/ 80mm/ 210mm x 15m roll type
- Safety Level: Class I, type CF
- Power Requirements: AC: 220V +/-10%, 50Hz +/-5%, 50VA Built-in NiMH battery,12V
- Dimension: 285mm×200mm×50mm
- Weight: 2.5Kg
Safecare ECG eStore
Visit our Estore and check out the various options to suit your requirements. You can pay online with our safe and secure payment gateway or order and pay Cash on Delivery.
-
Warranty & Support
- Support by Email, Telephone or Online
- Buy Online or Order by Telephone
- Buy from our Dealers Network
- Safecare Electrocardio Graph Recorder is warranted against any defect due to defective materials or workmanship for a period of 1 Year
- Guaranteed support and spares
